Model 475

Density Ball

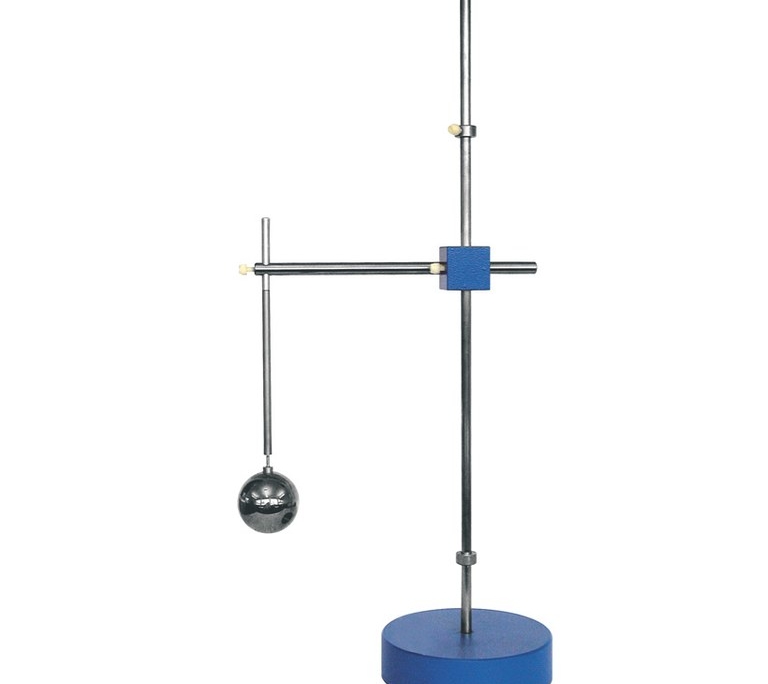

The Model 475 density ball is used to quickly and easily determine the density of paints, coatings and other (non-paste) liquids. The Model 475 density ball consists of a spherical immersion body (stainless steel, material No. 1.4305) and a holding rod with a taper. The following versions are available: Model 475/I, with a volume of 100 ml ± 0.1%, (at 20 ° C), Model 475/II, similar but with conformity assessment and test certificate, Model 475/III, with a volume of 10 ml ± 0.1% (at 20 ° C), Model 475/IV similar to Model 475/III but with conformity assessment and test certificate.

Norms

  • DIN 53 217 Part 2
  • VDA 621-113
  • ISO 2811 Part 2
