Model 142

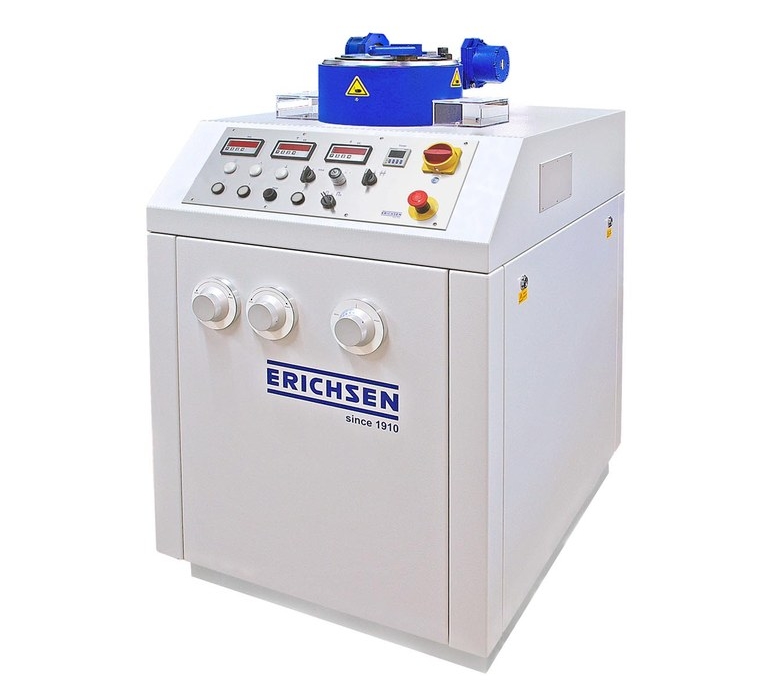

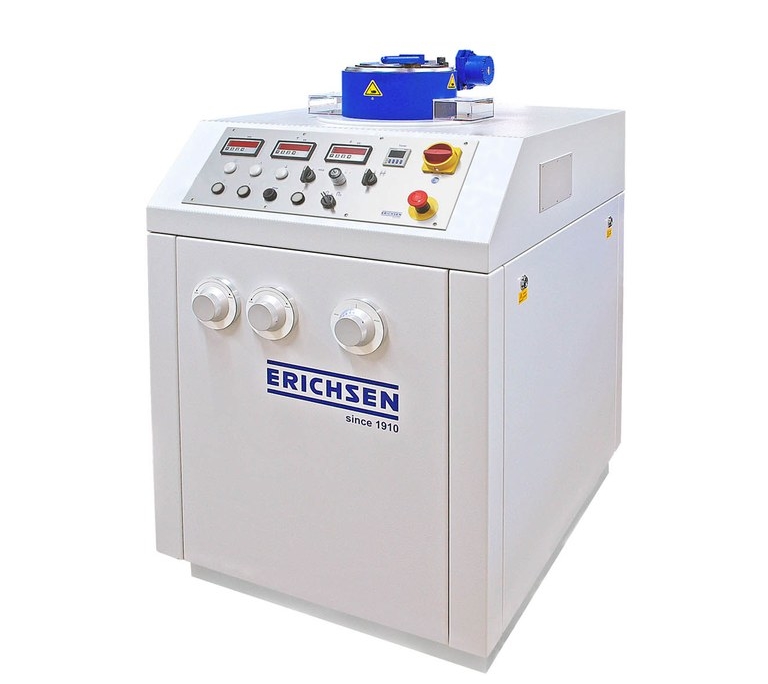

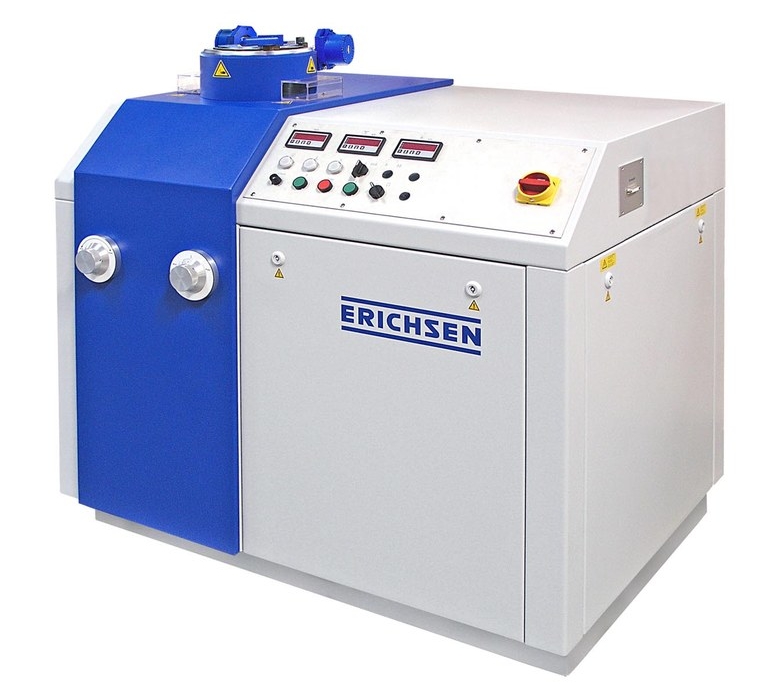

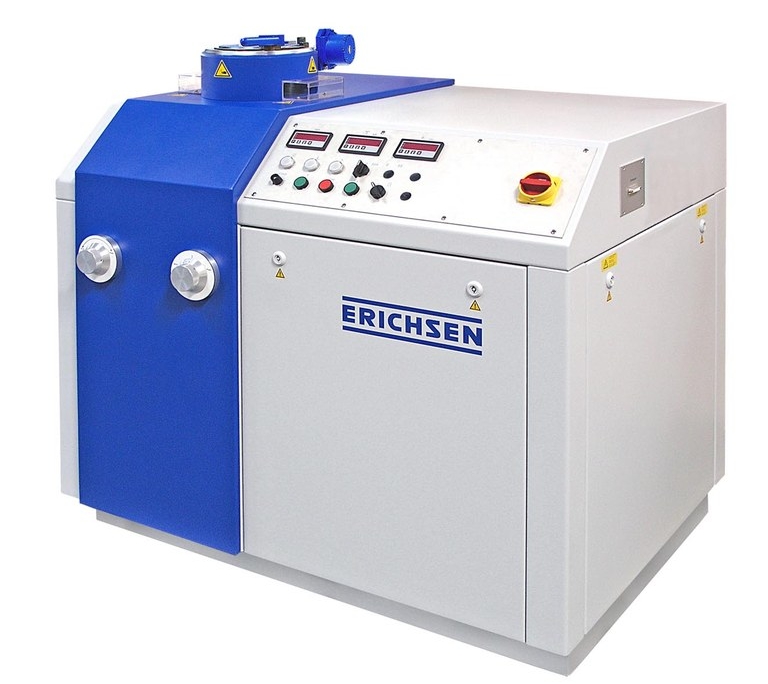

This sheet metal testing machine enables you to execute all of the important modern deep-draw testing procedures on ferrous and non-ferrous metals in a quick, simple and precise manner. It can also execute many technical tests, such as the ERICHSEN cupping test and the ERICHSEN deep-draw cup test, on sheets and strips. Relevant features: Square tensile test (40 x 40 mm), deep-draw expansion test (KWI test), hole expansion test according to ISO 16630, determination of deformation curves, deep-draw test with blank holder quick release (for tip test), deep-draw test with selectable drawing stamp travel distance, deep-draw test with hot-draw device up to 550 °C, ERICHSEN deep-draw test on painted sheets according to DIN EN ISO 1520, stamping-paint and coil-coating deep-draw cup tests. Special tests available on request.
