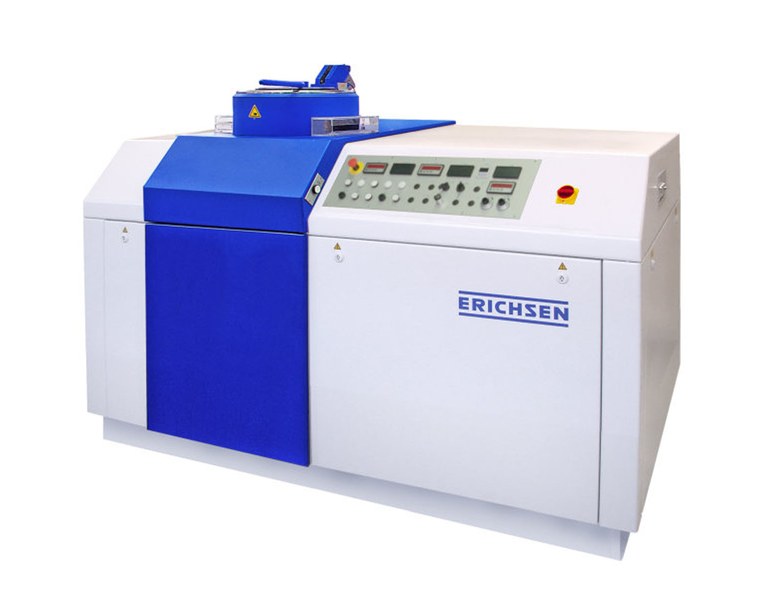

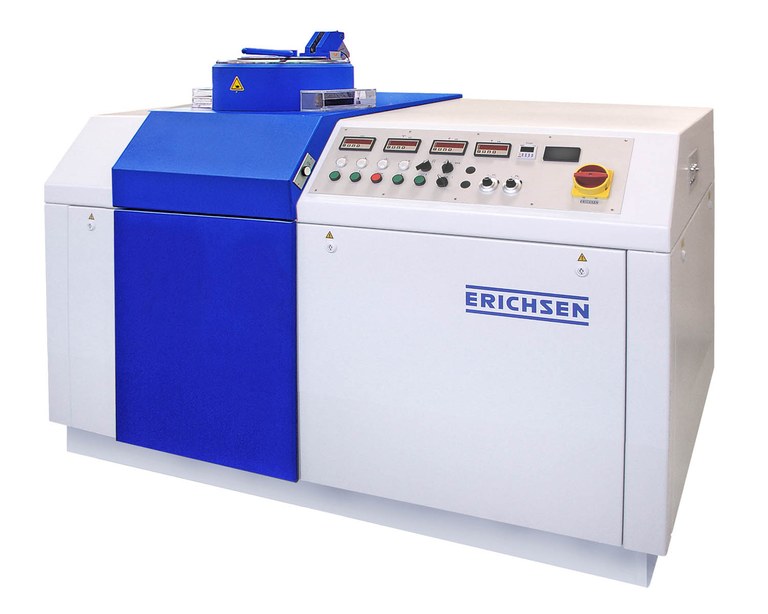

Model 145/146

This sheet metal testing machine enables you to execute all of the important modern deep-draw testing procedures on ferrous and non-ferrous metals in a quick, simple and precise manner. It can also execute many technical tests, such as the ERICHSEN cupping test and the ERICHSEN deep-draw cup test, on sheets and strips. Relevant features: Square tensile test (40 x 40 mm or 70 x 70 mm), deep-draw expansion test (ISO 16630), determination of deformation curves (FLC), LDH test, deep-draw test with blank holder quick release (for tip test), deep-draw test selectable drawing stamp travel distance, deep-draw test with warm drawing device up to 550 °C/700 °C, bulge test according to ISO 16808, ERICHSEN deep-draw test on painted sheets according to DIN ISO 1520, stamping-paint and coil-coating deep-draw cup tests. Special tests available on request.
